Ultra Pro – Ultrasonic leak imaging for high-reliability inspections
Redefining standards in gas leak inspection

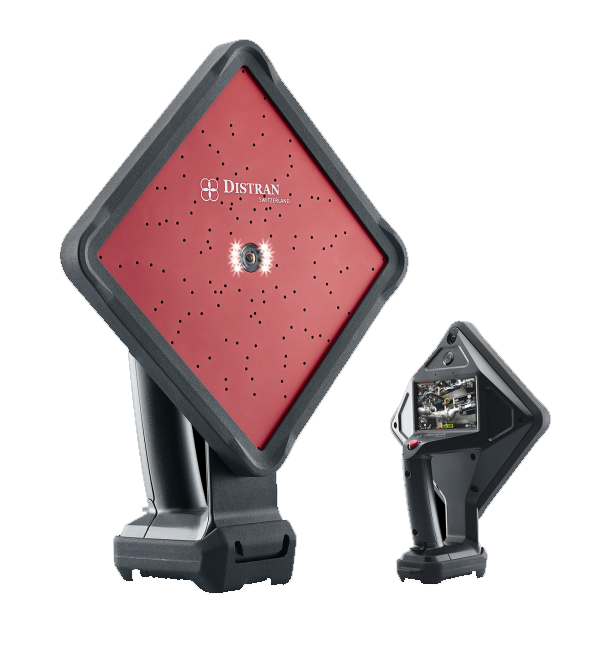

The Ultra Pro hand-held ultrasound imaging camera is capable of accurately locating gas leaks from several meters with unrivaled speed. It excels in finding leaks in high or in hard-to-reach areas.
The sensor works by detecting the specific sounds that pressurized gas leaks emit. Thanks to its integrated 124 ultrasound microphones, the ultrasound camera reconstructs the position of the sound source. The information is overlaid in real-time with a wide angle optical image.
Ultra Pro creates, in a single tap, images and videos that can be assembled in reports either using Distran’s reporting software Audalytics or with the user’s preferred software.
Works with all types of gas
From
0.3 to 100 m
or 1 to 330 ft
Down to
1°
accuracy
Down to
0.3 L/h
or 2.10⁻⁴ cfm for a 4 bar methane leak at a 30 cm distance
Pressures from
50 mbar
or 0.7 psi
It also works with vacuum leaks
Ultrasonic Gas Leak Detection

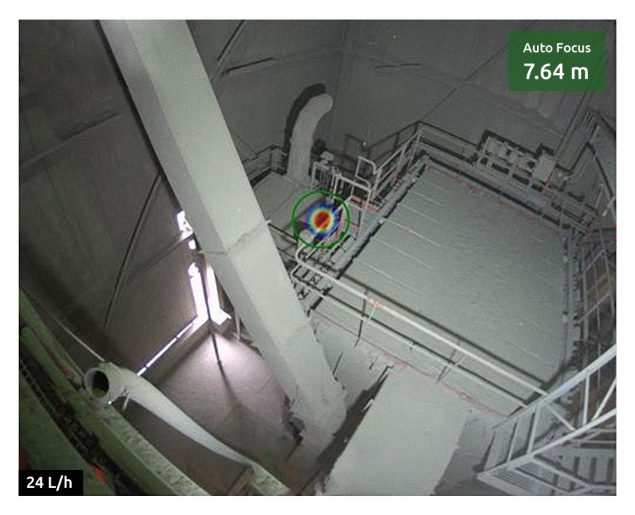

Pinpoint gas leaks without scanning each single element
Ultrasonic Gas Leak Imaging is a technique that allows you to analyze the sound emitted by leaks and and display it as an image. It works for any gas type, even vacuum.
BENEFITS
Why use Ultra Pro?
10 times faster than traditional methods
Classical gas detectors require the operator to thoroughly check every potential leak point. With Ultrasonic Imaging, the detection can be performed without scanning every single element. The inspection is done several meters away, reducing the need for scaffolding.
10 times faster than traditional methods
Classical gas detectors require the operator to thoroughly check every potential leak point. With Ultrasonic Imaging, the detection can be performed without scanning every single element. The inspection is done several meters away, reducing the need for scaffolding.
Uncover leaks in unexpected locations
As sound propagates beyond our line of sight, hidden leaks that are missed with other techniques can be detected with Ultrasonic Imaging.
Quantify leak rate
Ultra Pro is able to quantify the leak rate (in liters per hours or in cubic feet per minute) in a few seconds without using a tripod.
Best ultrasonic camera
Best-in-class handling in the field
From the beginning, Ultra Pro has been developed with industrials and by people who have performed many inspections in the past. Weighing only 1.5 kg including the battery, the camera is operated with a single hand, so that the operator can safely inspect, even in a staircase. The camera has also been tested for drops, in design to be robust. Its integrated LED lighting illuminate dark areas without the need for a separate light source.
- 1.5 kg all inclusive
- Single-handed, self contained
- 1400 lumens, integrated LED lighting
- Robust design
The only ATEX Certified ultrasound camera in the world
In January 2021, Distran announced the Ultra Pro X, the world’s first ATEX certified ultrasound camera.
Ultra Pro X is the ATEX certified version of Ultra Pro, specifically designed for use within potentially explosive atmospheres for the oil and gas, chemistry and power plant industry.
